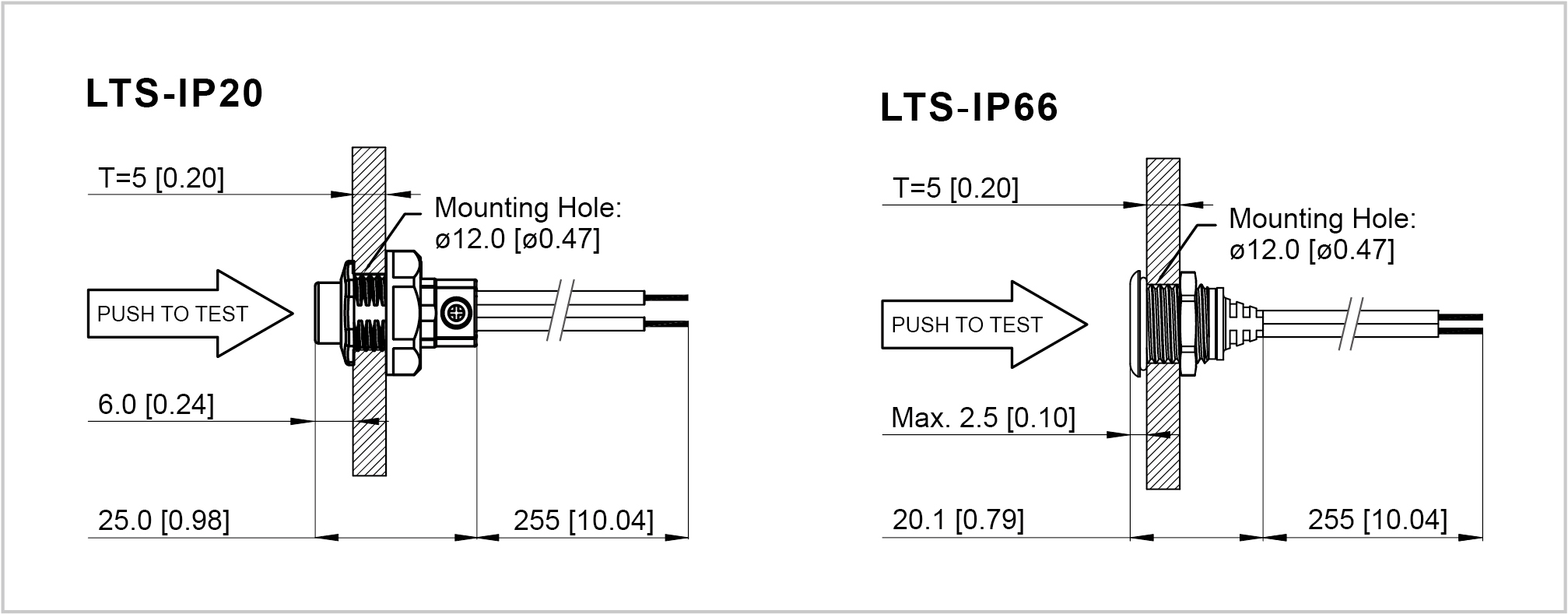

DIMENSIONS AND INSTALLATION
Dimension unit: mm [inch]
Tolerance: ±1.0mm [0.04]

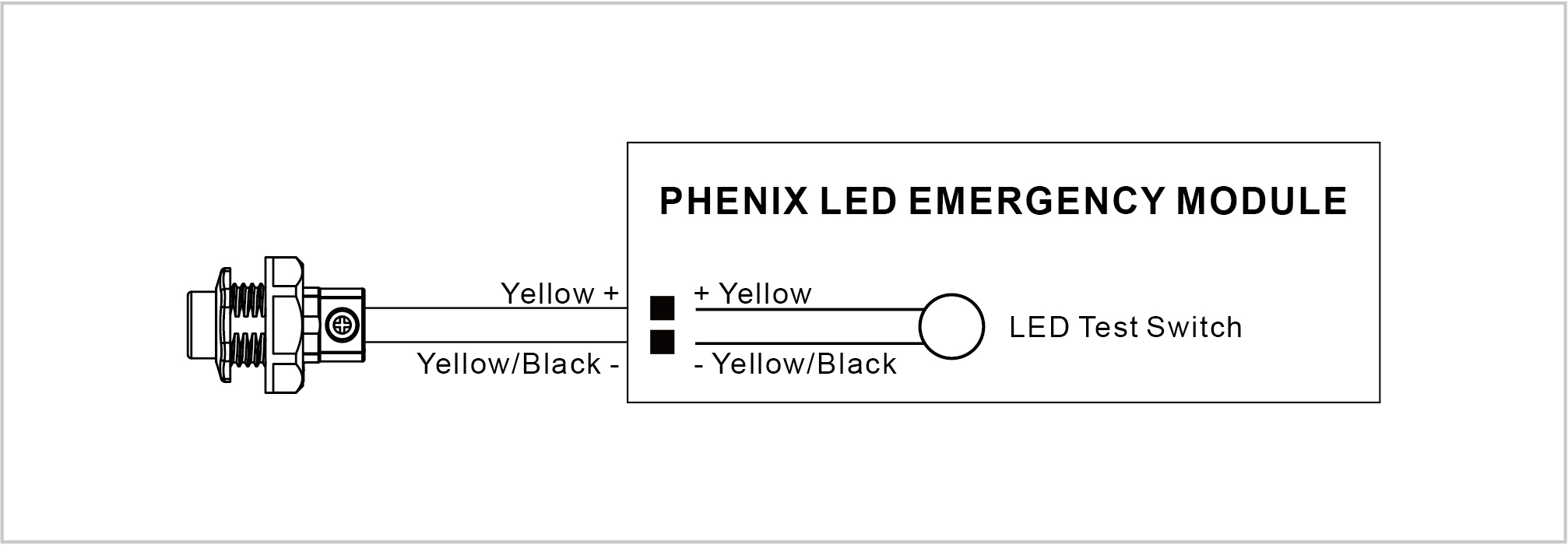

WIRING DIAGRAM
OPERATION/TESTING/INDICATION
OPERATION
1. Normal mode - When the AC power is applied, the lighting system works in a normal mode. The LED test switch is illuminated, indicating the batteries are being charged
2. Emergency mode - When the AC power fails, the lighting system automatically switches to emergency power, operating the lighting load at rated emergency power. The
LED test switch goes out, indicating the batteries are being discharged
MANUAL TEST
1. Press the LTS 1 time to force a ten-second emergency test
2. Press the LTS 2 times continuously within 5 seconds to force a 30-second monthly test. After the test is completed, the next (30-day) monthly test will count from this date
3. Press the LTS 3 times continuously within 5 seconds to force a 90-minute annual test. After the test is completed, the next (52-week) annual test will count from this date
4. During any manual test, press and hold the LTS for greater than 3 seconds to terminate a manual test. The Preprogrammed Scheduled Auto Test time will not change
5. A short term discharge test may be conducted after the lighting system has been charging for 1 hour. Charge for 24 hours before conducting a long term discharge test
LED TEST SWITCH CONDITIONS
1. LTS Slow Blinking: Normal Charging
2. LTS On: Battery Fully Charged - Normal Mode
3. LTS Off: Power Failure
4. LTS Gradual Change: In Testing Mode
5. LTS Quickly Blinking: Abnormal Condition - Corrective Action Required
